產品介紹
金屬管接頭系列

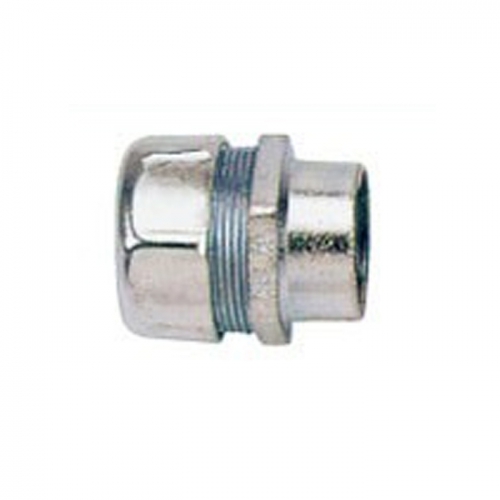

內牙接頭(金屬料)
編號
YCM
分享至
詳細說明
符合環保材質﹕ ROHS
‧TYPE : YCM內牙
| 型號 | 規格 | Dimension (mm) | 牙制 | 包裝數量 | |||
|
Catalog
No.
|
Nominal
Size
|
I.D | A | B | C | Thread |
Packing
Pcs/Bag
|
| YCM-03 | 3/8" | 11.2 | 28 | 32.0 | 8.5 | PT 1/2" | 50 |
| YCM-04 | 1/2" | 14.7 | 32 | 37.5 | 11.5 | PT 1/2" | 50 |
| YCM-06 | 3/4" | 19.2 | 40 | 37.5 | 11.5 | PT 3/4" | 50 |
| YCM-10 | 1" | 24.8 | 46 | 46.5 | 12.5 | PT 1" | 25 |
| YCM-12 | 1 1/4" | 33.0 | 57 | 50.0 | 15.5 | PT 1 1/4" | 20 |
| YCM-14 | 1 1/2" | 38.7 | 65 | 54.4 | 19.0 | PT 1 1/2" | 10 |
| YCM-20 | 2" | 49.0 | 78 | 60.0 | 19.5 | PT 2" | 10 |
| YCM-24 | 2 1/2" | 61.3 | 97 | 69.6 | 22.0 | PT 2 1/2" | |
| YCM-30 | 3" | 73.5 | 115 | 75.0 | 24.0 | PT 3" | |
| YCM-40 | 4" | 97.5 | 144 | 88.0 | 29.5 | PT 4" | |
